ID.8

ACETYL TRANSFERASE

PDB

The ligand-free form

1z9u_AB [Alignment: 1 2]

The ligand-bound form

1s7n_AB[Alignment: 1 2]

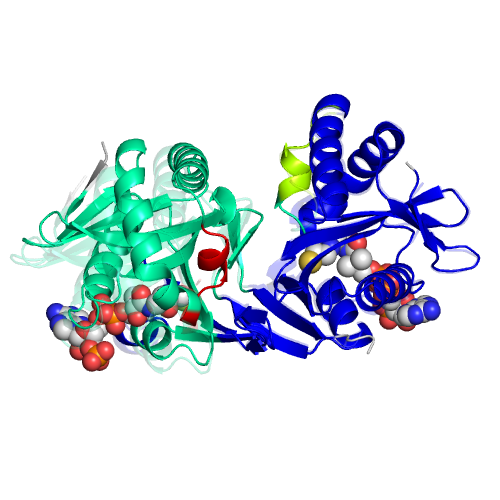

View

Animations of

the structural change



Using Jmol

Function

EC*1

CSA distance*2

2.3.1.-

*1 Enzyme commission number.
*2 The distance between the active site annotated in CSA23 and the ligand-binding sites.

Ligand

PDB*1

Full name

2xCOA

2x(COENZYME A)

*1 Ligand name designated by the PDB identifiers.

Segments

Component No.

Fixed*1

Moving*1

Motion type

Ligand binding

Coupled motion type

1

D1(145A-150A,154A-170A,174A-177A,2B-37B,41B-156B,169B-175B)

D2(5A-40A,43A-44A,46A-144A,151A-153A,171A-173A,38B-40B,157B-168B)

Domain

Independent

2

D1

L3(41B-47B)

Local

Independent

3

D2

L4(37A-45A)

Local

Coupled

Opening

*1 The location of the fixed and moving segments indicated by the residue number assigned in the ligand-bound form. The background color of characters indicates the corresponding segment in the structure. The colored segments not described in the Table are: 1) a part of component in which the motion is small (< 1.0 A), or, 2) a part of a protomer of homodimers, for which a corresponding part of the other protomer is shown in the Table.

Displacement and disorder

Component No.

RMSD*1

Displacement*2

Disorder-order transition*3

Disorder residue*4

Helix-Coil*5

1

2

2

3.3

+4

3

4.4

+3

+4

*1 The root-mean-square displacement of a component of motion calculated for the domain motions.
*2 The mean displacement of a component of motion calculated for the local motions.
*3 Order-disorder transition: Whether the open form contains the disordered structure.
*4 The number of disordered residues.
*5 The number of residues exhibiting the alpha-helix to coil transition.

Linear response

Component No.

Correlation coefficient*1

1

2

3

0.23

*1 The correlation coefficient between the displacement vector predicted by the linear response theory and the one observed in the crystal structures.

Crystal environment

Component No.

Open state*1

Crystal packing*2

1

Bound

Coupled

2

Bound

Coupled

3

*1 Distinction between the open state and the closed state required for examining the influence of the crystal environment.
*2 Crystal packing: Whether the change in the crystal environment is coupled with the structural change.
