ID.25

ADENOSINE KINASE

PDB

The ligand-free form

2pkf_BB [Alignment: 1 2]

The ligand-bound form

2pkn_AA[Alignment: 1 2]

View

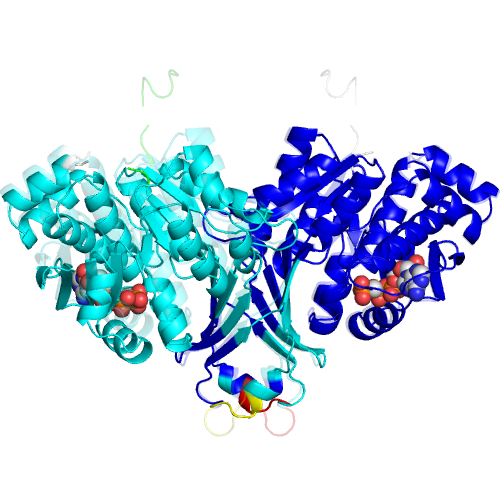

Animations of

the structural change


Using Jmol

Function

EC*1

CSA distance*2

2.7.1.20

2.9

*1 Enzyme commission number.
*2 The distance between the active site annotated in CSA23 and the ligand-binding sites.

Ligand

PDB*1

Full name

2xACP

2x(PHOSPHOMETHYLPHOSPHONIC ACID ADENYLATE ESTER)

*1 Ligand name designated by the PDB identifiers.

Segments

Component No.

Fixed*1

Moving*1

Motion type

Ligand binding

Coupled motion type

1

D1(3A-13A,22A-22A,25A-36A,44A-104A,114A-323A,1A-2A,14A-21A,23A-24A,37A-43A,105A-113A)

D2(14A-21A,23A-24A,37A-43A,105A-113A,3A-13A,22A-22A,25A-36A,44A-104A,114A-321A)

Domain

Independent

2

D1

L3(25A-29A)

Local

Independent

*1 The location of the fixed and moving segments indicated by the residue number assigned in the ligand-bound form. The background color of characters indicates the corresponding segment in the structure. The colored segments not described in the Table are: 1) a part of component in which the motion is small (< 1.0 A), or, 2) a part of a protomer of homodimers, for which a corresponding part of the other protomer is shown in the Table.

Displacement and disorder

Component No.

RMSD*1

Displacement*2

Disorder-order transition*3

Disorder residue*4

Helix-Coil*5

1

1.4

2

3.6

+1

*1 The root-mean-square displacement of a component of motion calculated for the domain motions.
*2 The mean displacement of a component of motion calculated for the local motions.
*3 Order-disorder transition: Whether the open form contains the disordered structure.
*4 The number of disordered residues.
*5 The number of residues exhibiting the alpha-helix to coil transition.

Crystal environment

Component No.

Open state*1

Crystal packing*2

1

Free

Coupled

2

Free

Coupled

*1 Distinction between the open state and the closed state required for examining the influence of the crystal environment.
*2 Crystal packing: Whether the change in the crystal environment is coupled with the structural change.
