ID.16

MYOSIN II HEAVY CHAIN

PDB

The ligand-free form

1fmv_A [Alignment: 1]

The ligand-bound form

1w9j_A[Alignment: 1]

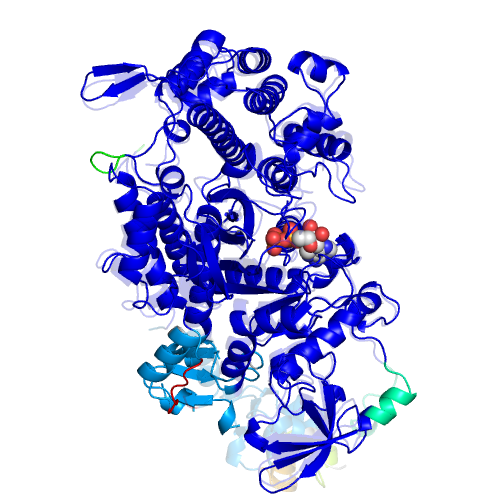

View

Animations of

the structural change



Using Jmol

Function

EC*1

CSA distance*2

3.6.4.1

2.8

*1 Enzyme commission number.
*2 The distance between the active site annotated in CSA23 and the ligand-binding sites.

Ligand

PDB*1

Full name

ADP

ADENOSINE-5'-DIPHOSPHATE

*1 Ligand name designated by the PDB identifiers.

Segments

Component No.

Fixed*1

Moving*1

Motion type

Ligand binding

Coupled motion type

1

D1(4A-202A,209A-248A,250A-455A,457A-486A,509A-621A,626A-689A)

D2(487A-488A,490A-501A,507A-508A,690A-705A,719A-724A,733A-753A)

Domain

Independent

2

D1

L3(20A-27A)

Local

Independent

3

D1

L4(622A-626A)

Local

Independent

4

D2

L5(706A-718A)

Local

Independent

5

D2

L6(725A-732A)

Local

Independent

6

D2

L7(500A-506A)

Local

Independent

*1 The location of the fixed and moving segments indicated by the residue number assigned in the ligand-bound form. The background color of characters indicates the corresponding segment in the structure. The colored segments not described in the Table are: 1) a part of component in which the motion is small (< 1.0 A), or, 2) a part of a protomer of homodimers, for which a corresponding part of the other protomer is shown in the Table.

Displacement and disorder

Component No.

RMSD*1

Displacement*2

Disorder-order transition*3

Disorder residue*4

Helix-Coil*5

1

5.2

2

9.6

3

Yes

+4

4

Yes

-13

5

Yes

-8

6

Yes

+5

*1 The root-mean-square displacement of a component of motion calculated for the domain motions.
*2 The mean displacement of a component of motion calculated for the local motions.
*3 Order-disorder transition: Whether the open form contains the disordered structure.
*4 The number of disordered residues.
*5 The number of residues exhibiting the alpha-helix to coil transition.

Crystal environment

Component No.

Open state*1

Crystal packing*2

1

Bound

Coupled

2

Free

Coupled

3

4

5

6

*1 Distinction between the open state and the closed state required for examining the influence of the crystal environment.
*2 Crystal packing: Whether the change in the crystal environment is coupled with the structural change.
