CD.37

ABC TYPE PERIPLASMIC SUGAR-BINDING PROTEIN

PDB

The ligand-free form

2uvg_A [Alignment: 1]

The ligand-bound form

2uvi_A[Alignment: 1]

View

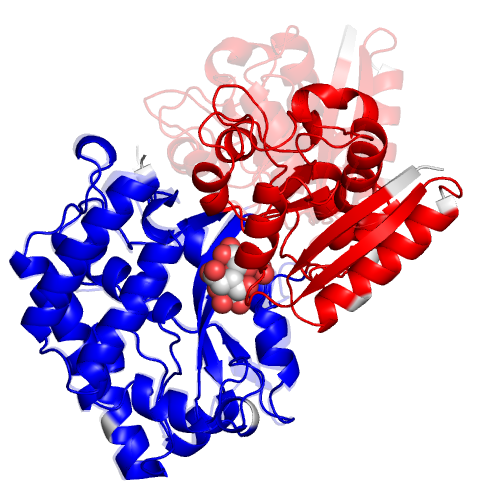

Animations of

the structural change


Using Jmol

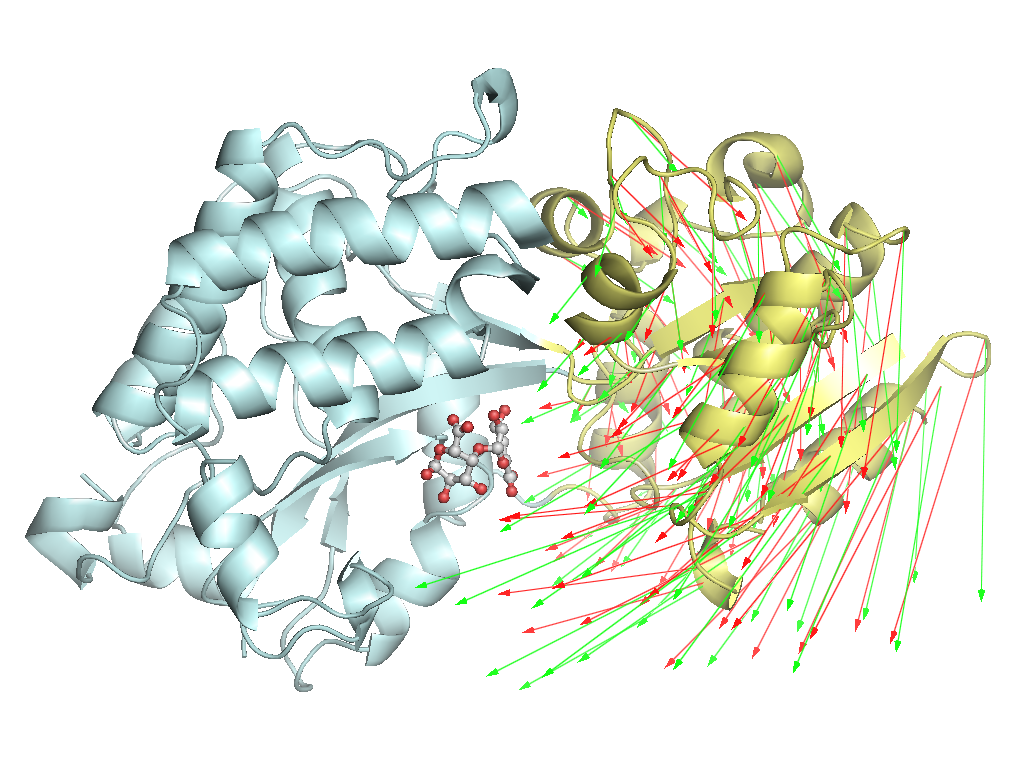

An image of the result of

the linear response theory


Generated by PyMOL

Ligand

PDB*1

Full name

UNG

4-O-(4-DEOXY-BETA-L-THREO-HEX-4-ENOPYRANURONOSYL)-ALPH-D-GALACTOPYRANURONIC ACID

*1 Ligand name designated by the PDB identifiers.

Segments

Component No.

Fixed*1

Moving*1

Motion type

Ligand binding

Coupled motion type

1

D1(140A-170A,172A-258A,260A-305A,362A-428A)

D2(30A-41A,43A-53A,55A-139A,306A-337A,339A-361A)

Domain

Coupled

Closure

*1 The location of the fixed and moving segments indicated by the residue number assigned in the ligand-bound form. The background color of characters indicates the corresponding segment in the structure. The colored segments not described in the Table are: 1) a part of component in which the motion is small (< 1.0 A), or, 2) a part of a protomer of homodimers, for which a corresponding part of the other protomer is shown in the Table.

Displacement and disorder

Component No.

RMSD*1

Displacement*2

Disorder-order transition*3

Disorder residue*4

Helix-Coil*5

1

4.9

*1 The root-mean-square displacement of a component of motion calculated for the domain motions.
*2 The mean displacement of a component of motion calculated for the local motions.
*3 Order-disorder transition: Whether the open form contains the disordered structure.
*4 The number of disordered residues.
*5 The number of residues exhibiting the alpha-helix to coil transition.

Linear response

Component No.

Correlation coefficient*1

1

0.93

*1 The correlation coefficient between the displacement vector predicted by the linear response theory and the one observed in the crystal structures.
