CD.53

FARNESYL PYROPHOSPHATE SYNTHASE

PDB

The ligand-free form

1yhk_AA [Alignment: 1 2]

The ligand-bound form

1yhm_AB[Alignment: 1 2]

View

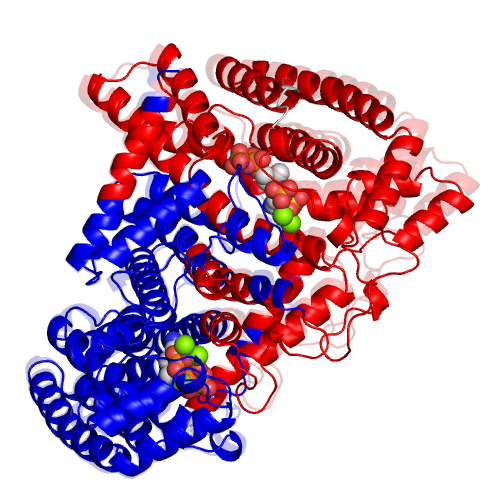

Animations of

the structural change


Using Jmol

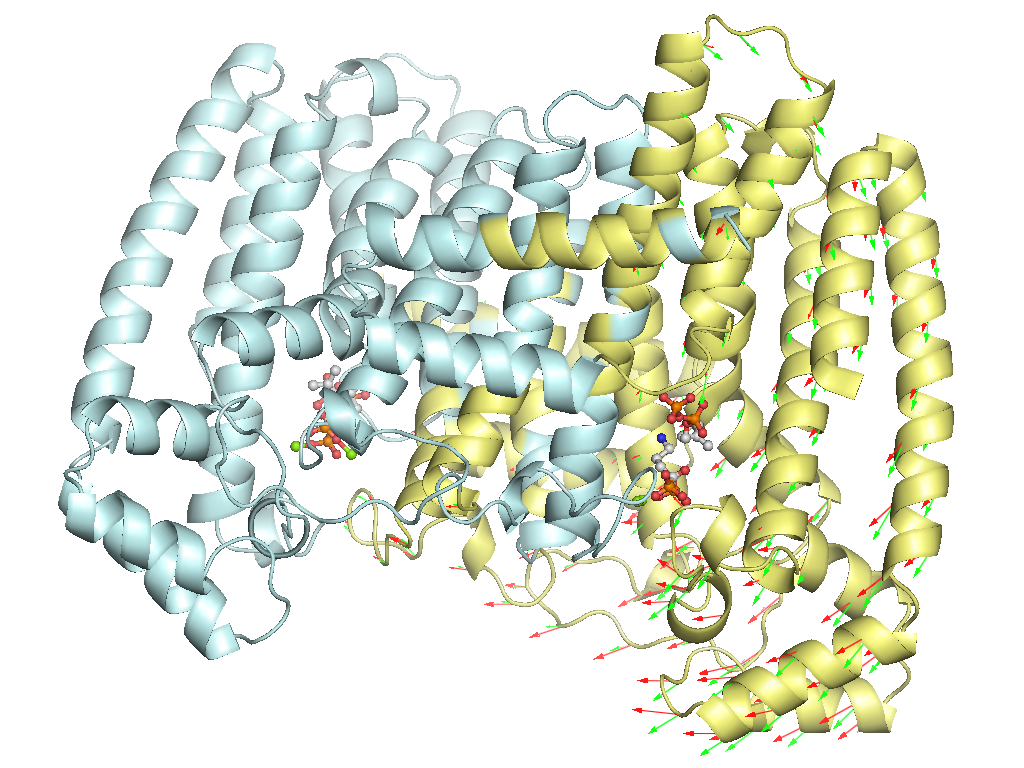

An image of the result of

the linear response theory


Generated by PyMOL

Function

EC*1

CSA distance*2

2.5.1.10

2.3

*1 Enzyme commission number.
*2 The distance between the active site annotated in CSA23 and the ligand-binding sites.

Ligand

PDB*1

Full name

2xAHD,2xIPR,5xMG

2x(ALENDRONATE, FOSAMAX (TM)),2x(ISOPENTYL PYROPHOSPHATE),5x(MAGNESIUM ION)

*1 Ligand name designated by the PDB identifiers.

Segments

Component No.

Fixed*1

Moving*1

Motion type

Ligand binding

Coupled motion type

1

D1(11A-13A,44A-93A,120A-122A,125A-127A,137A-360A,1B-2B,5B-5B,17B-44B,86B-86B,88B-88B,94B-119B,129B-157B)

D2(3A-10A,14A-43A,94A-119A,123A-124A,128A-136A,3B-4B,6B-16B,45B-85B,87B-87B,89B-93B,120B-128B,158B-358B)

Domain

Coupled

Closure

*1 The location of the fixed and moving segments indicated by the residue number assigned in the ligand-bound form. The background color of characters indicates the corresponding segment in the structure. The colored segments not described in the Table are: 1) a part of component in which the motion is small (< 1.0 A), or, 2) a part of a protomer of homodimers, for which a corresponding part of the other protomer is shown in the Table.

Displacement and disorder

Component No.

RMSD*1

Displacement*2

Disorder-order transition*3

Disorder residue*4

Helix-Coil*5

1

1.2

*1 The root-mean-square displacement of a component of motion calculated for the domain motions.
*2 The mean displacement of a component of motion calculated for the local motions.
*3 Order-disorder transition: Whether the open form contains the disordered structure.
*4 The number of disordered residues.
*5 The number of residues exhibiting the alpha-helix to coil transition.

Linear response

Component No.

Correlation coefficient*1

1

0.84

*1 The correlation coefficient between the displacement vector predicted by the linear response theory and the one observed in the crystal structures.
