ID.30

PHENYLALANINE-4-HYDROXYLASE

PDB

The ligand-free form

1j8t_AA [Alignment: 1 2]

The ligand-bound form

1mmt_AA[Alignment: 1 2]

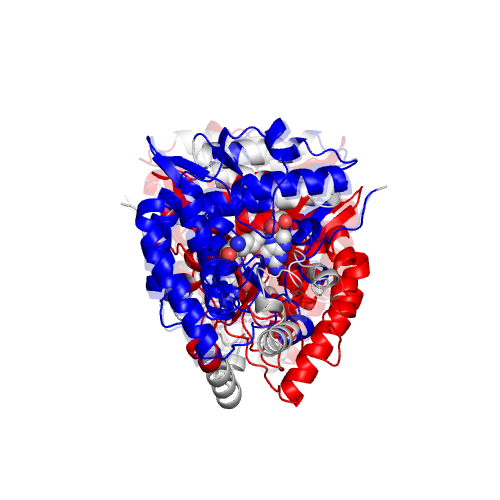

View

Animations of

the structural change


Using Jmol

Function

EC*1

CSA distance*2

1.14.16.1

2.6

*1 Enzyme commission number.
*2 The distance between the active site annotated in CSA23 and the ligand-binding sites.

Ligand

PDB*1

Full name

2xH4B,2xNLE

2x(5,6,7,8-TETRAHYDROBIOPTERIN),2x(NORLEUCINE)

*1 Ligand name designated by the PDB identifiers.

Segments

Component No.

Fixed*1

Moving*1

Motion type

Ligand binding

Coupled motion type

1

D1(413A-419A,118A-127A,163A-305A,314A-390A,396A-397A,405A-412A,420A-422A)

D2(120A-127A,163A-305A,314A-390A,396A-397A,406A-412A,420A-424A,413A-419A)

Domain

Independent

*1 The location of the fixed and moving segments indicated by the residue number assigned in the ligand-bound form. The background color of characters indicates the corresponding segment in the structure. The colored segments not described in the Table are: 1) a part of component in which the motion is small (< 1.0 A), or, 2) a part of a protomer of homodimers, for which a corresponding part of the other protomer is shown in the Table.

Displacement and disorder

Component No.

RMSD*1

Displacement*2

Disorder-order transition*3

Disorder residue*4

Helix-Coil*5

1

2.8

*1 The root-mean-square displacement of a component of motion calculated for the domain motions.
*2 The mean displacement of a component of motion calculated for the local motions.
*3 Order-disorder transition: Whether the open form contains the disordered structure.
*4 The number of disordered residues.
*5 The number of residues exhibiting the alpha-helix to coil transition.

Crystal environment

Component No.

Open state*1

Crystal packing*2

1

Free

Coupled

*1 Distinction between the open state and the closed state required for examining the influence of the crystal environment.
*2 Crystal packing: Whether the change in the crystal environment is coupled with the structural change.
