CL.14

PROTEIN-TYROSINE PHOSPHATASE, NON-RECEPTOR TYPE 1

PDB

The ligand-free form

1pa1_A [Alignment: 1]

The ligand-bound form

1t48_A[Alignment: 1]

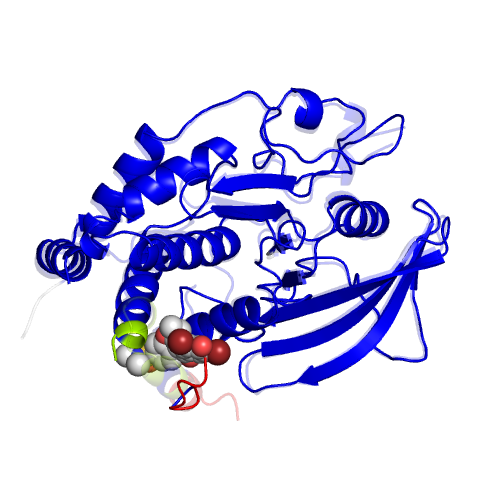

View

Animations of

the structural change


Using Jmol

Function

EC*1

CSA distance*2

3.1.3.48

15.6

*1 Enzyme commission number.
*2 The distance between the active site annotated in CSA23 and the ligand-binding sites.

Ligand

PDB*1

Full name

BB3

3-(3,5-DIBROMO-4-HYDROXY-BENZOYL)-2-ETHYL-BENZOFURAN-6SULFONIC ACID DIMETHYLAMIDE

*1 Ligand name designated by the PDB identifiers.

Segments

Component No.

Fixed*1

Moving*1

Motion type

Ligand binding

Coupled motion type

1

D1(1A-279A,290A-291A)

L2(280A-289A)

Local

Coupled

Opening

2

D1

L3(292A-298A)

Local

Coupled

Closure

*1 The location of the fixed and moving segments indicated by the residue number assigned in the ligand-bound form. The background color of characters indicates the corresponding segment in the structure. The colored segments not described in the Table are: 1) a part of component in which the motion is small (< 1.0 A), or, 2) a part of a protomer of homodimers, for which a corresponding part of the other protomer is shown in the Table.

Displacement and disorder

Component No.

RMSD*1

Displacement*2

Disorder-order transition*3

Disorder residue*4

Helix-Coil*5

1

Yes

-6

2

16.4

-4

*1 The root-mean-square displacement of a component of motion calculated for the domain motions.
*2 The mean displacement of a component of motion calculated for the local motions.
*3 Order-disorder transition: Whether the open form contains the disordered structure.
*4 The number of disordered residues.
*5 The number of residues exhibiting the alpha-helix to coil transition.

Linear response

Component No.

Correlation coefficient*1

1

2

0.85

*1 The correlation coefficient between the displacement vector predicted by the linear response theory and the one observed in the crystal structures.
