IL.19

YHCH PROTEIN

PDB

The ligand-free form

1jop_BC [Alignment: 1 2]

The ligand-bound form

1s4c_BC[Alignment: 1 2]

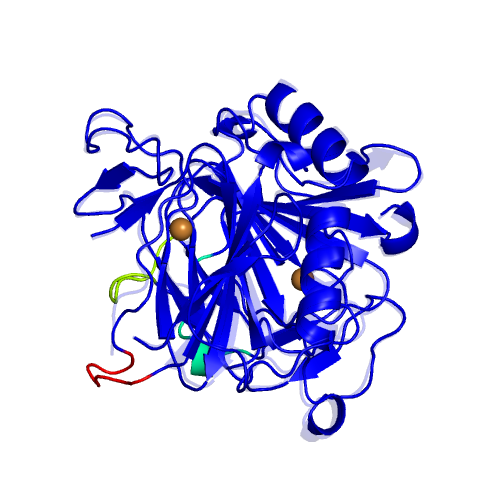

View

Animations of

the structural change


Using Jmol

Ligand

PDB*1

Full name

2xCU

2x(COPPER (II) ION)

*1 Ligand name designated by the PDB identifiers.

Segments

Component No.

Fixed*1

Moving*1

Motion type

Ligand binding

Coupled motion type

1

D1(1B-52B,61B-135B,143B-155B,1C-52C,61C-135C,143C-155C)

L2(53B-60B)

Local

Independent

2

D1

L3(136B-142B)

Local

Independent

*1 The location of the fixed and moving segments indicated by the residue number assigned in the ligand-bound form. The background color of characters indicates the corresponding segment in the structure. The colored segments not described in the Table are: 1) a part of component in which the motion is small (< 1.0 A), or, 2) a part of a protomer of homodimers, for which a corresponding part of the other protomer is shown in the Table.

Displacement and disorder

Component No.

RMSD*1

Displacement*2

Disorder-order transition*3

Disorder residue*4

Helix-Coil*5

1

Yes

+8

2

Yes

+7

*1 The root-mean-square displacement of a component of motion calculated for the domain motions.
*2 The mean displacement of a component of motion calculated for the local motions.
*3 Order-disorder transition: Whether the open form contains the disordered structure.
*4 The number of disordered residues.
*5 The number of residues exhibiting the alpha-helix to coil transition.
