IL.38

PUTATIVE MODIFICATION METHYLASE

PDB

The ligand-free form

2zig_AB [Alignment: 1 2]

The ligand-bound form

2zif_AB[Alignment: 1 2]

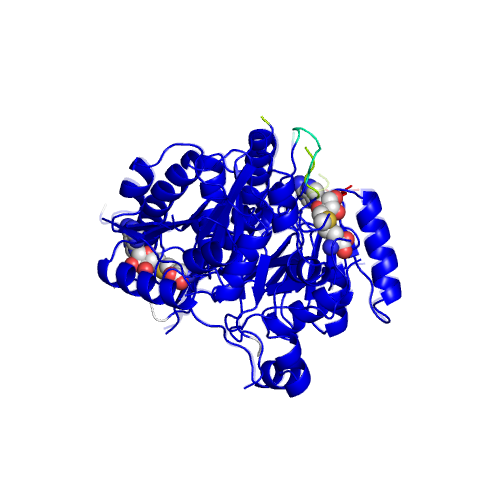

View

Animations of

the structural change


Using Jmol

Ligand

PDB*1

Full name

2xSAM

2x(S-ADENOSYLMETHIONINE)

*1 Ligand name designated by the PDB identifiers.

Segments

Component No.

Fixed*1

Moving*1

Motion type

Ligand binding

Coupled motion type

1

D1(21A-53A,60A-104A,107A-141A,156A-209A,219A-290A,21B-49B,65B-101B,109B-140B,156B-211B,218B-290B)

L2(102B-108B)

Local

Independent

2

D1

L3(50B-53B,64B-64B)

Local

Independent

*1 The location of the fixed and moving segments indicated by the residue number assigned in the ligand-bound form. The background color of characters indicates the corresponding segment in the structure. The colored segments not described in the Table are: 1) a part of component in which the motion is small (< 1.0 A), or, 2) a part of a protomer of homodimers, for which a corresponding part of the other protomer is shown in the Table.

Displacement and disorder

Component No.

RMSD*1

Displacement*2

Disorder-order transition*3

Disorder residue*4

Helix-Coil*5

1

Yes

+5

2

Yes

+2

*1 The root-mean-square displacement of a component of motion calculated for the domain motions.
*2 The mean displacement of a component of motion calculated for the local motions.
*3 Order-disorder transition: Whether the open form contains the disordered structure.
*4 The number of disordered residues.
*5 The number of residues exhibiting the alpha-helix to coil transition.
